S57 Vector charts

Introduction

New: Starting from version 11.5, downloading and installation of ENCs and updates are fully integrated in ScanNav. Refer to the Installation guide in pdf for full instructions.

S57 format is the standard vector format chosen for official ENC charts. ENCs are distributed according the S63 scheme which is an encrypted encapsulation of S57.

Primar is an International organization that centralizes Official ENCs from the Hydrographic Offices of countries member of the IHO. Charts are directly issued from the HO of concerned countries with updates delivered weekly. For more general information, you can consult this article from the SHOM , other SHOM documents at http://www.shom.fr/fr_page/fr_act_cartographie/index_act_carteelectro.htm or on the IHO web site at http://www.iho.int

ScanNav supports Official ENCs in their S57 and S63 formats, and is referenced as a Primar distributor.

S57 Display settings

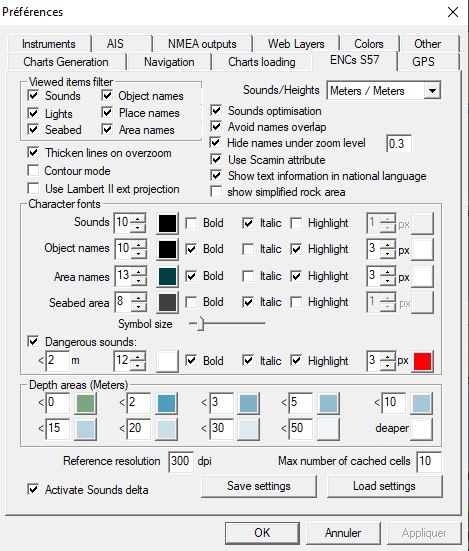

You can personalize the display of vector ENCs using the "ENCs S57" tab of ScanNav's preferences. You may save personal settings under different named configurations using the "Save settings" button, and switch easily between these configurations or restore the factory defaults using the "Load settings" button.

ENCs parameters - "Viewed items filter": lets you filter certain chart features to  have a lighter display (unchecked features are hidden)
- "Sounds optimization" lets you eliminate deeper sounds when zooming out, so as to remain readable while keeping the most dangerous sounds.
- "Avoid names overlap" Eliminates texts that overlap when information is too dense, so as to keep a clear display.
- "Hide names under zoom level" : Names will be hidden if zooming out under the given value, so as  to keep things readable.
- "Use Scamin attribute": each chart object may contain an attribute "scamin" indicating not to display  this object under a certain scale, so as to clarify the display. By unchecking this option, this attribute is ignored and these objects will display whatever the scale.
- "Show text information in national language": Names and other text information may be displayed either in English for all charts, or in language of the originating  country of each ENC.
- "Show simplified rock area" will result in a faster, but less explicit display of rock areas.
- "Reference resolution": Lets you tune the resolution  used to display ENCs at native scale. If you consider a 1/1 ratio, it will not be sufficient to render all details without overlapping due to screen technology which is around 72 to 96 dpi. A ratio of 2 or 3 will be more comfortable to see all details. It is very similar to paper charts that are scanned around 200dpi and displayed on screen that are around 72 to 96 dpi.
- "Max number of cached cells": number of cells that will be kept in memory so as not to have to reload when passing from one to the other, therefore increasing performances.
- "Character fonts": Lets you tune size / color / type  and highlighting of different texts.

- OverZoom: Users are often confused thinking that vector charts have infinite details when zooming in, which is totally false. A chart,  vector, or raster, has always a compilation scale in which it was designed. In ScanNav, OverZoom is put in evidence by thickening contour lines, text, etc... The user can therefore visually realize (in addition to the scale indicated in the title bar) that no extra details is coming up when zooming too near, as he would see with raster charts.  Although it is not recommended, this option can be deactivated by unchecking "Thicken lines on overzoom".
- "Contour Mode": Lets you overlap S57 charts to raster charts to check them or combine for example with Google screen shots (need to deactivate the automatic mode)
- "Use Lambert II ext projection": Lets you overlap ENCs on top of MrSid Aerial photos that are in Lambert projection. Warning: it is nevertheless strongly recommended to only use this possibility temporarily, and switch back to standard Mercator projection for navigation usage.

Starting from version 14.1, it is possible to choose Soundings and Heights units in ENCs between Meters (default), Feet, or Fathom. This option not only impacts the charts display, but also all fields related to deths and heighs in the ENC settings, and also "dynamic sounds" units (see below). It has nevertheless no impact on the S57 charts information window which always displays raw information as coded in the ENCs, so always in Meters.
Warning: changing back and forth between units might engender rounding errors. For example switch from Meters to Fathom then back to Meters might change a value of 2m to 1.99m. On another side, the internal reference in ENCs is expressed in Meters which is the IHO International standard, including for countries using imperial units. This can lead to display of soundings with an excess of precision.

Dynamic sounds:

- "Dangerous sounds": Lets you highlight sounds under a given value, to put them in evidence using specific text display. Important warning: Dangerous sounds will evolve according to the depth correction entered (see below)

- "Depth areas": Lets you customize colors for different depth areas. A tip is to enter in the first cell the minimum security depth with a specific color. All depths areas containing sounds above this value will therefore be be put in evidence, highlighted with the given color. Important warning: Depth areas will evolve according to the depth correction entered (see below)

- "Activate sounds delta": This option activates the depth correction control correctif sonde in the menu bar to enable the dynamic sounds feature according to a water level at a given time.

WARNING: this feature modifies sounding values displayed on the chart. The process is to enter the water level of the current tide. For example, if you enter a value of 3m, a sound of "1" meter will be displayed "4" meters, and will therefore not correspond to the hydrografic zero anymore
- actif When the option "Depth correction" is checked with a value different to 0, the text field will be highlighted in red to signal that soundings have been modified.
- modif As soon as you start modifying the value, it will be highlighted in yellow to indicate that a modification is pending, and that soundings on the charts are therefore in an undetermined state. It will switch back to red (or white if value is 0), as soon as you validate the modification by hitting the "Enter" key, or clicking elsewhere, or automatically after 5 seconds; and soundings on the chart will be modified accordingly.

- By unchecking the option, the input field will switch to gray, and soundings will be back to their standard values.

 WARNING: This feature only concerns ENC/S57 charts.  Soundings displayed on other types of charts (Navionics, rasters,...) are not affected. You must therefore be very careful when using different types of charts altogether. The "Activate sounds delta" control will only show up if some ENCs are present in you charts library.

Querying ENCs :

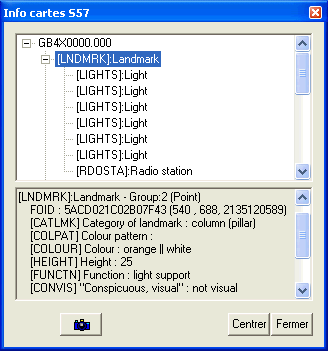

ENCs are designed with a vector technology, bringing additional information for each object inside the chart (lights, buoys, sounds, etc...) . All objects can be queried for additional information with the following specific S57 information window. To open it, use the  icon, or menu "Option" -> "S57 info". (refer to the general documentation to configure custom toolbars in case  is not present)

Infos S57
  •   When clicking on the map, the top part of the window will list objects intersecting the clicked point.
  • When selecting a line, the corresponding object will be highlighted on the map, and  textual information relative to this object will be listed in the bottom part of the dialog (for ex. light characteristics, sounding values, etc...)
  • Certain objects have additional information in a separate text file. When this is the case, a button info will show up at the bottom of the window. Clicking on it will display the corresponding text file in a separate window.
  • Other objects can also be associated to a photo or other illustration. In this case the button photo will show up and clicking on it will show the photo in a new window.
  • The window can be re-sized for more visibility, and proportion of the 2 sub-windows may be changed by dragging the separator .

Installation of ENCs and insertion in ScanNav's Charts library:

Vector ENCs are managed in the same way as Raster charts (BSB, etc...) through the Charts Library. The library may contain a mix of Vector and Raster charts.

To insert a full pack of encrypted ENCs, you just have to insert the "enc.pmt" file from the ENC_ROOT directory, which will add all present ENCs in one step.
To insert non encrypted S57 files (such as free US S57 chart available at http://chartmaker.ncd.noaa.gov/mcd/enc/download.htm), the process is similar, just use file "CATALOG.031" instead of "enc.pmt".

New: For version 11.5 and above, please refer to the  installation guide in pdf format for a full description of the installation process.
For older versions, please refer to the S63Insall documentation (accessible from the Windows "start" menu, then in ScanNav folder)

logo

Navionics Vector charts

New: starting from version 11.5, installation of Navionics charts is fully integrated into ScanNav. Please refer to the Installation guide in pdf for full instructions.

Navionics charts are supported in ScanNav from version 8.0 and above.

Display settings

Display settings are available using menu "File" ==> "Navionics preferences".

Paramètrages Navionics

You can show/hide different types of objects by checking/un-checking the corresponding options, and also change the general look of the charts.

"Colours Used": Lets you choose the general look of navionics charts. the "Easy View" modes will display with larger characters and objects, "BA" or "USA" will act on the colors according to European (BA), or American (USA) standards.

"Depth fill mode": Lets you define a custom Safety Depth sound value (in meters) from which the colour will change. If "Only 2 colours" is checked,  this area will be the same color than the default area (depending on the chart scale).

"Aerial Photo Options" let you define how aerial images will be displayed (only on Platinum and Platinum+ charts), either none, full, or limited to ground area plus safety depth defined above. You may also  display them opaque or with some transparency to see the chart below.
Chart objects can be queried in a similar way as for ENCs using the same icon infos s57 (see above)which also gives access to water heights and currents tables integrated in the chart (click on symbols <C> or <T> in the chart) and/or information relative to ports and oblique photos (Platinum only).

Installation of Navionics charts and insertion in ScanNav's Charts library:

New:  starting from version 11.5, installation of Navionics charts is fully integrated into ScanNav, and they can be read from a standard SD/CF card reader. Please refer to the separate Installation guide in pdf for full instructions.

Transferring Waypoints, Routes, and Tracks:

You may use the CF/SD card to transfer Waypoints, Routes, and Tracks between ScanNav and different Navionics compatible plotters. The procedure differs according to the plotter brands, please refer to the plotter's documentation for instructions regarding the manipulations on the plotter itself.

Geonav plotters and GPS:
Geonav's file format is directly supported in ScanNav. Use menu entries "Geonav Import" and "Geonav Export" from the main window "File" menu, or from the "Objects library" window for a more selective transfer.
Files should be copied in the DATA folder on the SD card, in the following sub-folders:
  • MARKERS : folder where to store waypoints
  • ROUTES: folder where to store routes
  • TRACKS: folder where to store tracks
Other brands:
For other types of plotters, you should use ScanNav's possibility to Import/Export objects in the GPX standard format, together with third party freeware or shareware specialized in file format conversions, such as GPSBabel  http://www.gpsbabel.org/ or GPSUtility http://www.gpsu.co.uk/  who can manage a lot of different formats.
In ScanNav, use entries "GPX Import" and "GPX Export" from the main window "File" menu, or from the "Objects library" window for a more selective transfer.

 Displaying Water Levels (Navionics data):

Water levels predictions integrated in the Navionics charts can be displayed in ScanNav as curves, in a similar way to the Shom data using SNTides. Right click on the chart with the mouse right button, and choose "Water Heights" then "Navionics source", which will display the water heights for the nearest station.
